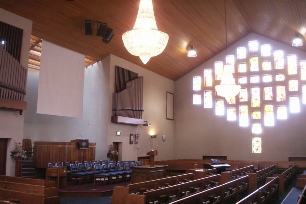

The installation in 1st Garvagh Presbyterian Church combines all the elements of
Sound, Audio Visual and Camera systems. The church sound system was in major need
of upgrade as the existing system had been in place since the church opened in the
70's, we were commissioned by the church committee to design and install a discreet
yet powerful solution capable of handling the delicate balance of worship music and
speech, for this we used Meyer Sounds UPJ-1P self powered loudspeaker. The speakers
are mounted at roof level and provide a full range of frequencies 180° around the
building. The sound system is controlled by a 32 channel Soundcraft LX7 II mixing
desk with system Equalisation provided by a BSS Opal Graphic EQ. Other elements in
the system include Sennheiser Evolution series radio microphones and Sennheiser Gooseneck
and Choir fixed microphones. The Audio Visual aspect of this installation includes
1 Hitachi CP-X705 fited with an ultra long throw lens as the main projector in the
system with two additional Hitachi CP-X605 projectors to acccomadate the extrime
right and left wings of the church, the system is controlled by a single Kramer VP-725DS
video switcher enabling multiple inputs to the system from Cameras, Laptops, DVD
players and other source equipment, to accomade the minister and choir an single
50" screen is located at the back of the church to display notes and words. The installation
includes two high quality ENEO Fast Trac speedome cameras these cameras enable the
services to be recorded on DVD and distruted to congeration members who are are unable
to attend services. additionaly the cameras can be shown on the screens around the
church giving them additional uses during special services.
Equipment installed includes:
Meyersound UPJ-1P Loudspeakers
Multiple Sennheiser Gooseneck and Choir microphones
Multiple Hitachi projectors
Electric drop down screen
Eneo fasttrac speed dome cameras
50" plasma display
Kramer audio visual distribution and switching
Data Video professional DVD recorder
10 Bay DVD duplicator
Soundcraft 32 channel mixing desk
BSS Graphic EQ
Tascam CD Recorder
Proel Multi-Core system
